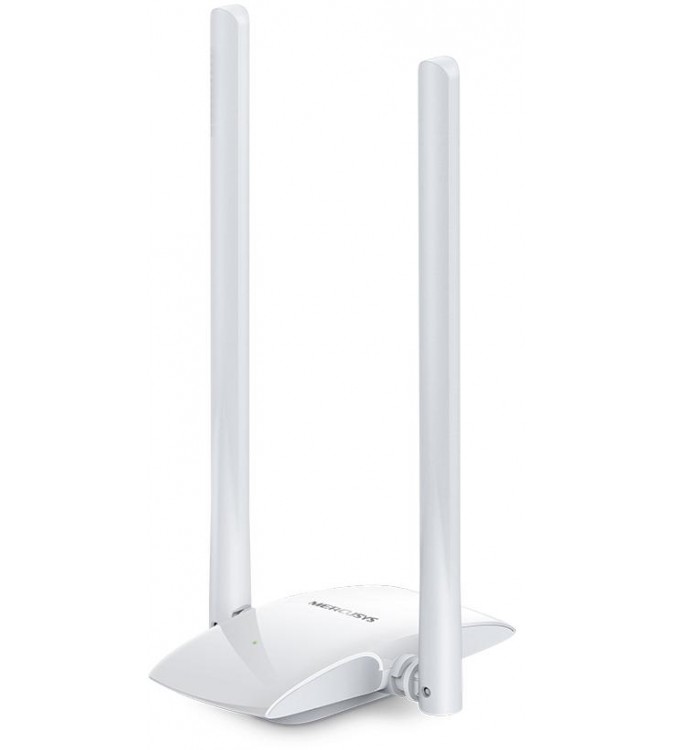

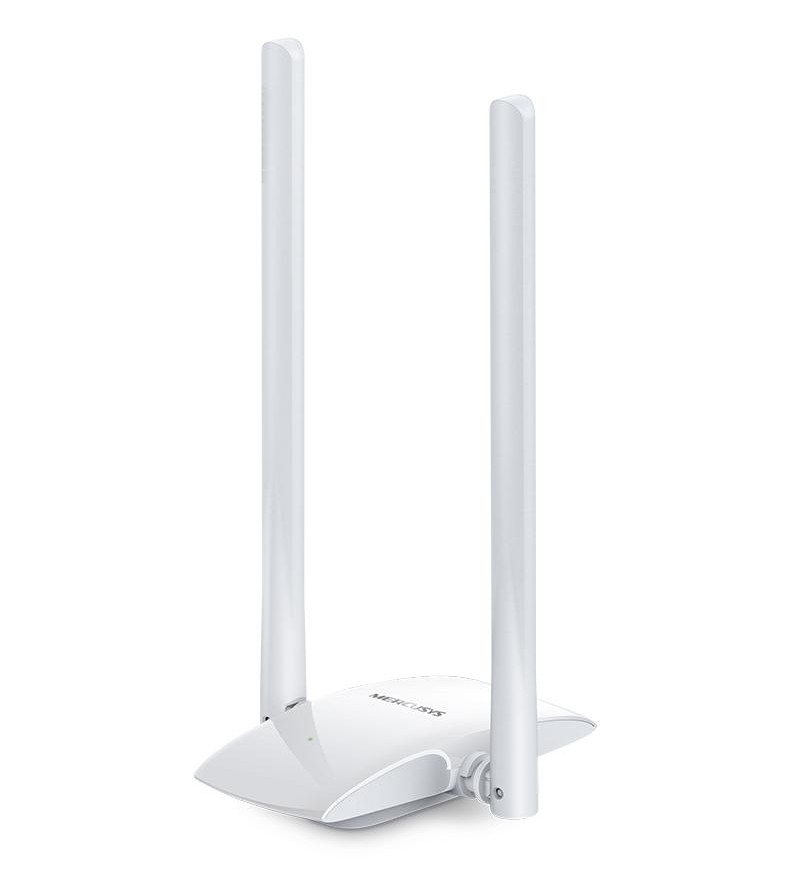

Mercusys Scheda Wireless USB Wi-Fi N300 2.4GHz - MW300UH

Mercusys MW300UH
Scheda Wireless USB Wi-Fi N300 con antenne alto guadagno

• Scheda di rete Wi-Fi N300 - Connessione Wi-Fi fino a 300Mbps in 2.4Ghz per PC cablati
• Antenne ad alto guadagno - Due antenne 5dBi ad alto guadagno aumentano la capacità di ricezione del segnale Wi-fi del router
• 2x2 MIMO - Maggiore velocità di connessione
• Compatibilità - Supporto Windows 10/8.1/8/7/XP (32/64bit)

Wireless

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

2.400 - 2.4835 GHz

Signal Rate

11n: Up to 300 Mbps (Dynamic)

11g: Up to 54 Mbps (Dynamic)

11b: Up to 11 Mbps (Dynamic)

Reception Sensitivity

300M: -68 dBm@10% PER

270M: -68 dBm@10% PER

144M: -71 dBm@10% PER

130M: -71 dBm@10% PER

54M: -74 dBm@10% PER

11M: -86 dBm@8% PER

6M: -90 dBm@10% PER

1M: -94 dBm@8% PER

Transmission Power

≤20 dBm (EIRP)

Wireless Security

WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Hardware

Dimensioni (W X D X H)

4.46 × 2.51 × 0.85 in. (without antennas)

4.46 × 3.96 × 7.92 in. (with vertical antennas)

113.2 × 63.8   × 21.7 mm  (without antennas)

113.2 × 100.5 × 201.1 mm(with vertical antennas)

Interfaces

Micro USB 2.0

Tipologia di Antenna

External

Other

Certifications

CE, ROHS

Package Contents

300 Mbps High Gain Wireless USB Adapter (MW300UH)

Quick Installation Guide

Resource CD

USB Cable (Micro USB to USB A)

Environment

Operating temperature: 0⁰C ~ 40⁰C (32⁰F ~ 104⁰F)

Storage temperature: -40⁰C ~ 70⁰C (-40⁰F ~ 158⁰F)

Operating humidity: 10% ~ 90% Non-Condensing

Storage humidity: 5% ~ 90% Non-Condensing

System Requirements

Windows 10/8.1/8/7/XP (32/64 bit)
